Name: RG59 Coaxial Cable
Brand: Right Angle
SKU: 172393555

RG59 coaxial cable meets the standard: RG, and the maximum working frequency is dc-1ghz. RG59 is mainly used in radio frequency, closed-circuit television, television transmission audio, video and other fields. Rg-59 coaxial cable is 75Ohm flexible coaxial cable

RG59, also known as syv75-5, is a solid coaxial cable. Its full name is solid core PVC insulated PVC sheathed RF coaxial cable.75 ohm SYWV series physical foaming polyethylene product description: it is usually used for satellite TV transmission and cable TV transmission, and is suitable for RF transmission.

Hangzhou right angle Cable Technology Co., Ltd. is very good at producing RG59. We produce more than 10000 kilometers of coaxial cable RG59 every year. RG59 coaxial cable is a common communication cable, which is used in CATV system, TV, various communication and satellite receiving functions. RG59 coaxial cable generally uses CCS as the inner conductor, because it is very cheap and of good quality. Our buyers like RG59 coaxial cable in CCS + FPE mode very much.

Coaxial cables are a type of data cable that is widely used in telecommunication systems. It is commonly used to transmit video signals, TV signals, and even internet data. The RG59 coaxial cable is one of the most widely used coaxial cables in the market today. In this article, we’ll go over the description of the RG59 Coaxial Cable and the benefits it could bring to various communication systems.

The RG59 Coaxial Cable is a 75-ohm coaxial cable that is predominantly used in CCTV (closed-circuit television) cameras and other video signal transmission applications. The "RG" in its name stands for "Radio Guide," and "59" indicates its serial number. This type of cable is designed to transfer video signals at a high frequency range, and it is preferred over other types of cables due to its affordability and flexibility. The RG59 has a copper conductor and a braided shield that is protected by an outer jacket, usually made of PVC or PE material.

Specification of RG59 Coaxial Cable

The RG59 Coaxial Cable has several specifications that set it apart from other coaxial cables. These are as follows:

1. Conductor Material: The conductor of the RG59 Coaxial Cable is typically made of copper, which allows for better signal transmission.

2. Conductor Size: The conductor size of the RG59 Coaxial Cable ranges from 20 to 22 AWG.

3. Impedance: The RG59 has an impedance rating of 75-ohms, which means it matches the impedance of surveillance cameras and other video signal transmission devices.

4. Frequency Range: This type of cable can transmit signals within the frequency range of 0 hertz to 400 MHz.

5. Shielding: The RG59 Coaxial Cable has a braided shield that protects it from electromagnetic interference (EMI) and radio frequency interference (RFI).

6. Jacket Material: The RG59 Coaxial Cable jacket is usually made of PVC or PE material, which provides excellent protection against moisture, sunlight, and other environmental factors.

Benefits of RG59 Coaxial Cable

Due to its numerous specifications, the RG59 Coaxial Cable offers several benefits to various communication systems, including:

1. Cost-effective: RG59 coaxial cables are affordable and easy to install. It is the first choice for budget-conscious installers.

2. Less Attenuation: The RG59 Coaxial Cable has less signal loss over long distances because of its copper conductor and braided shield.

3. Easy to Install: RG59 cables can be easily installed by anyone and do not have complex installation requirements. The cable itself is lightweight and flexible, making it easy to work with, and can be terminated using compression, twist-on, or crimp connectors. RG59 cables are available in different lengths and can be cut to the desired size easily.

4. Versatile: RG59 coaxial cables are versatile and can be used for various applications, including CCTV, CATV, and other video signal transmission systems.

5. High-quality Signal Transmission: Due to its superior shielding and impedance ratings, the RG59 Coaxial Cable is ideal for transmitting high-quality video signals.

Applications of RG59 Coaxial Cable

RG59 coaxial cables are widely used in surveillance systems, CCTV cameras, CATV systems, and video signal transmission applications. Additionally, RG59 cables are used in high-frequency data transfer applications and satellite communication systems. Due to its affordability and high-quality signal transmission capabilities, the RG59 Coaxial Cable is one of the most popular cables used for video signal transmission in many industries.

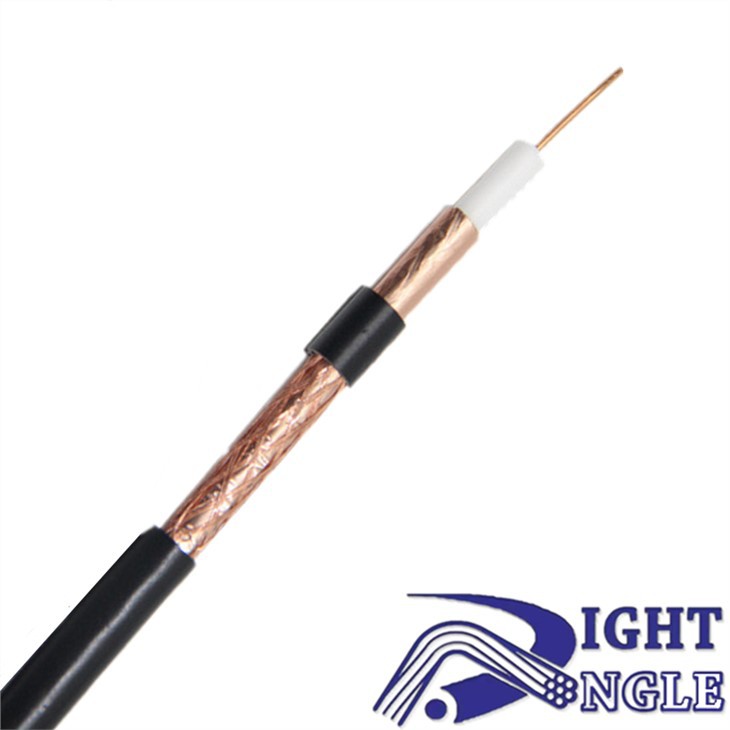

Construction

Conductor	Material	CCS
	Diameter	0.81mm ± 0.02 mm
	Wire Gauge	20 AWG
Insulation	Material	FPE
Insulation	Diameter Diameter	3.66 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	APG
	Width	14 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 20%
Braid	Material	CCA
	Diameterr	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
Jacket	Diameter	6.1 mm ± 0.5 mm

Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional

Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)

Certifications and Standards

Certification	CPR Eca
Executive Standards	Q/DXJ 194-2020

Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)	Maximum(dB/100ft)	Maximum(dB/100m)
5	0.86	2.82
55	2.05	6.73
187	3.60	11.81
300	4.45	14.60
450	5.40	17.72
600	6.20	20.34
750	6.98	22.87
865	7.52	24.67
1000	8.13	26.64
1200	8.97	29.40
1450	9.89	32.41
1800	11.81	38.72
3000	14.30	46.90
