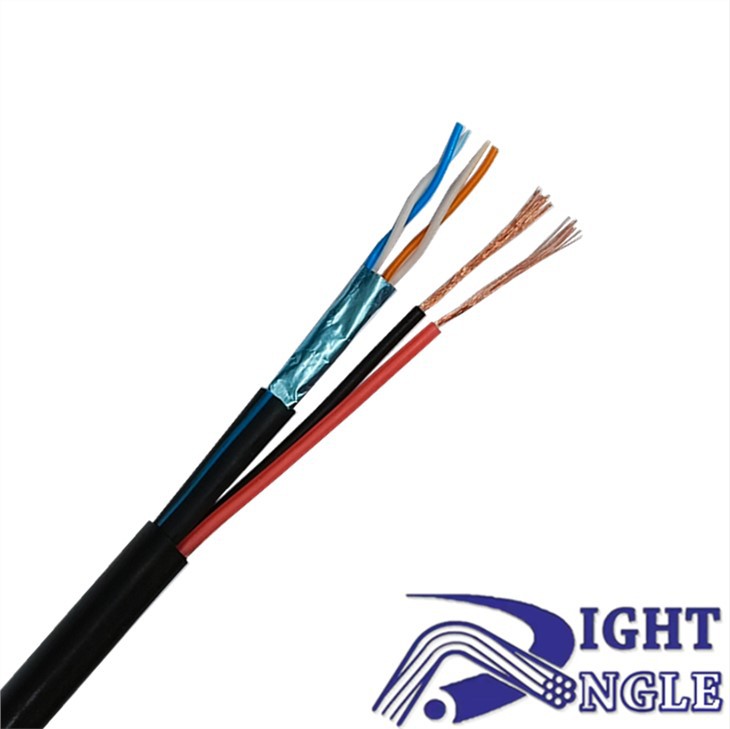

2 Pair Network Power Cable

 if you have any questions and confusions, you can contact our sales staff, and we will reply to your questions within 24 hours.



A 2-pair network power cord is a special type of cable designed to provide power to network devices while also transmitting data over the network. These cables are typically used in applications where high power devices such as access points, IP cameras, and switches need to be installed away from the power source. 2-pair network power cables are manufactured by several companies and are available in a variety of lengths and configurations to suit different applications.



The 2-pair network power cord is designed to transmit power and data signals over a single cable. The cable is a combination of two types of wires - one pair that transmits power and the other that transmits data signals. Each pair is twisted together to reduce EMI and crosstalk.



One of the main advantages of the 2-pair network power cord is that it eliminates the need for separate power cords for network devices. This reduces installation costs and simplifies the installation of equipment where mains power is unavailable. Additionally, the cable's unique design enables the system to power devices beyond the typical distance limitations of network cabling. The cable can transmit power up to 328 feet (100 meters) in a single run, allowing network equipment to be installed in more locations.



2 Pairs of network power cables have different configurations to suit different applications. Some of the most common configurations are:



1. PoE (Power over Ethernet) – This is a standard that enables devices to receive power and data over a single Ethernet cable. PoE can power devices up to 15.4 watts, while PoE+ (PoE Plus) can power devices up to 30 watts.



2. PoE++ (PoE Plus Plus) – This is a new standard for high power devices requiring up to 60 watts of power. The standard is also known as 4PPoE, which stands for Four Pair Power over Ethernet.



3. DC Power - The 2-pair network power cable can also be used to deliver DC power to devices that do not support PoE.



2-pair network power cables are commonly used in a variety of applications including:

1. Security System - This cable is used to power IP cameras and other security equipment.

2. Wireless Access Points – The cables are used to power the wireless access points, which are often installed in hard-to-reach places.

3. Digital Signage – This cable is used to power digital signage displays and is usually installed in public places such as airports and shopping malls.

4. Industrial Applications - This cable is used to power industrial equipment such as sensors, motors and control systems.

5. Data Center – This cable is used to power switches, servers, and other network equipment in the data center.











Special monitoring cables for network digital high-definition cameras, 2 pairs of data transmission cables have better signal quality, optimized for crosstalk, loss and other details. Extra Power can reduce unnecessary repetitive wiring steps.



Product Specification

Conductor	Material	BC
	Diameter	0.42 mm ± 0.02 mm
	Number of cores	2 × 2
Insulation	Material	HDPE
	Diameter Diameter	0.9 mm ± 0.1 mm
AL Foil	Construction	With Foil
	Material	AP
Jacket	Material	PVC
	Diameter	4.6 mm ± 0.3 mm
Power Conductor	Material	BC
	Diameter	2 × [ 19 × ( 0.12mm ± 0.02 mm ) ]
Power Insulation	Material	PE
	Diameter	1.8 mm ± 0.3 mm
Outer sheath	Material	PE
	Diameter	5.8 mm ± 0.3 mm



Packing

Single package	Wooden Drum
Package length	500 m
Outer package	Color box



Test Data

Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	>8 times of outer cable diameter
Conductor Elongation at Break	≥10%
Shrinkage of Insulation	≤5%
Color Migration Resistance of Insulation	No migration
Sheath Tensile Strength and Elongation at Break after Aging	≥12.5 MPa, ≥100%
Low Temperature Bending Test	No cracking
Heat Shock Test	No cracking
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)
Installation Temperature	0°C to +50°C (32°F to 122°F)



Certifications and Standards

Vertical Fire Propagation Test	Comply with IEC 60332-1-2
Certification	CPR Eca
