RG11 Coaxial Cable

Hangzhou right angle Cable Technology Co., Ltd. is a supply manufacturer. We can produce RG11 coaxial cable. If you want to know about our products, please feel free to contact us and get a quotation from us





Introduction:



RG11 coaxial cable is a type of coaxial cable used for transmitting high-frequency and high-bandwidth data signals over long distances. It has a larger diameter than most other coaxial cables, allowing it to carry signals with less attenuation over longer distances. RG11 coaxial cable is commonly used in applications such as cable TV, satellite TV, and broadband internet.

RG11 is generally used in cable TV and satellite TV. RG11 has the characteristics of high frequency and low loss The loss is almost the same as that of Rg7 underground cable, but the drop effect is also better.





Characteristics:

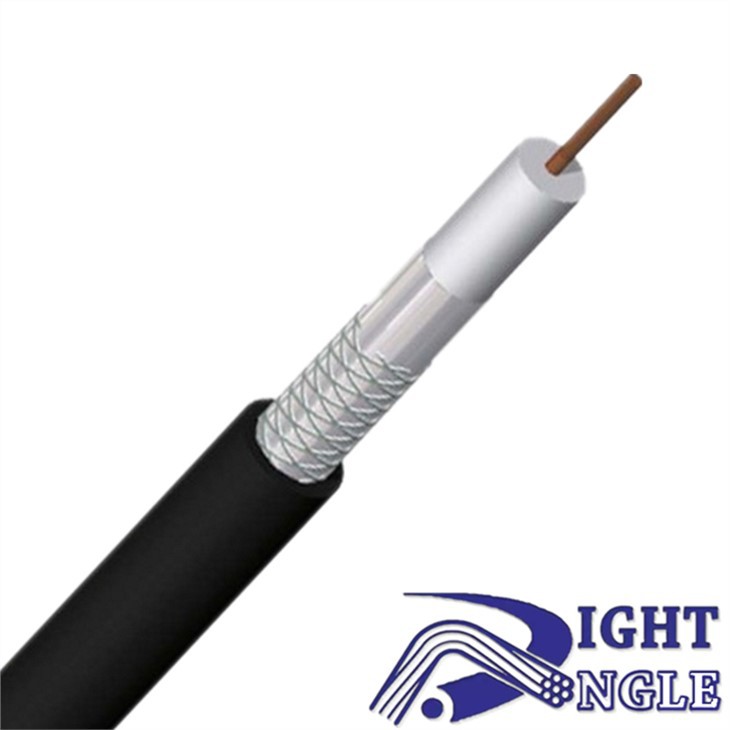

RG11 coaxial cable is a type of coaxial cable that has many characteristics that make it ideal for transmitting high-bandwidth data signals over long distances. The cable features a copper-clad steel center conductor, a dielectric spacer, and a sleeve made of aluminum foil and braid. This design helps to reduce signal attenuation and interference and improve the cable's signal integrity. The cable jacket is made of PVC material, which provides extra protection from UV light, water, and other environmental factors.



When purchasing and selecting coaxial cable, we are always tangled about whether to buy RG6 coaxial cable or RG11 coaxial cable. RG coaxial cable is generally used in communication projects, and sometimes it is also used for civil use. Such as satellite TV.



It is a high-efficiency solution for ship, am communication, radar, coaxial cable and other mobile communication systems. The attenuation level of RG11 coaxial cable is low RG11 transmits signals in a lower frequency range RG11 has lower signal attenuation



The distance of RG6 transmission signal is about 600 meters, and the distance of RG11 transmission signal is about 1100 meters.





Benefits:



One of the main benefits of using RG11 coaxial cable is its ability to transmit signals over long distances without significant attenuation or signal loss. This makes it a popular choice for applications that require high-bandwidth data transmission over long distances, such as cable TV and satellite TV.



Additionally, RG11 coaxial cable is highly resistant to interference, which reduces the likelihood of signal degradation or distortion. The cable's durable jacket provides excellent protection against environmental factors and makes it suitable for use in most indoor and outdoor applications.







Applications:

RG11 coaxial cable is commonly used in a variety of applications that require high-bandwidth data transmission over long distances. Some of the most common applications for RG11 coaxial cable include cable TV, satellite TV, and broadband internet. The cable's robust construction and interference resistance make it an ideal choice for transmitting high-quality video and audio signals without distortion or signal degradation. RG11 coaxial cable is also suitable for use in other applications, such as security systems, telecommunications, and industrial automation.





Construction

Conductor	Material	CCS
	Diameter	1.62mm ± 0.02 mm
	Wire Gauge	14 AWG
Insulation	Material	FPE
	Diameter Diameter	7.11 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	AP
	Width	24 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 5%
Braid	Material	AL
	Diameterr	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
	Diameter	9.98 mm ± 0.5 mm



Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional



Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)



Certifications and Standards

Certification	CPR Eca
Executive Standards	Q/DXJ 194-2020



Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)	Maximum(dB/100ft)	Maximum(dB/100m)
5	0.38	1.27
55	0.96	3.20
211	1.90	6.33
250	2.05	6.83
270	2.13	7.09
300	2.25	7.49
330	2.35	7.83
350	2.42	8.06
400	2.60	8.66
450	2.75	9.16
500	2.90	9.66
550	3.04	10.12
600	3.18	10.59
750	3.65	12.15
870	4.06	13.52
1000	4.35	14.49
