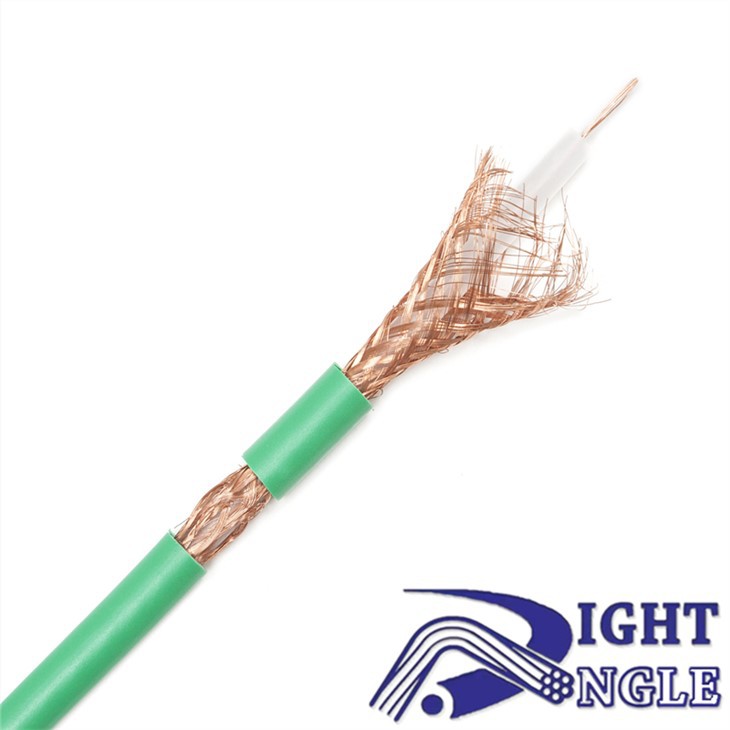

KX8 Coaxial Cable

KX8 coaxial cable is a type of coaxial cable that is commonly used in telecommunications and broadcasting applications. This cable consists of a central conductor, an insulating layer, a shield layer, and an outer jacket. It is designed to provide high-quality signal transmission with low signal attenuation and interference.



Kx8 cable is usually used for indoor cable TV, antenna TV, or cable for video communication. In terms of loss, kx8 is lower than kx6 and kx7, so kx8 can provide more stable and high-quality communication services.



The central conductor of the KX8 coaxial cable is made of copper or copper-clad steel and is usually surrounded by a dielectric insulator. The insulator can be made of various materials such as solid polyethylene, foamed polyethylene, or polypropylene, depending on the application. The thickness of the insulating layer is carefully chosen to meet the required electrical and mechanical specifications of the cable.



The shield layer of the KX8 coaxial cable is made of a conductive material such as copper, aluminum, or a combination of both. It is used to protect the signal from interference and to prevent electromagnetic radiation from leaking out of the cable. The shield layer can be either a braided shield or a foil shield, depending on the application. A braided shield is more flexible and resistant to damage, while a foil shield provides better protection against electromagnetic interference.



The outer jacket of the KX8 coaxial cable is made of a durable material such as PVC or polyethylene. It provides mechanical protection for the cable and is also resistant to environmental factors such as sunlight, moisture, and temperature changes. The color of the outer jacket can vary depending on the application and the manufacturer's preferences.



KX8 coaxial cable has several advantages over other types of cables. Firstly, it provides high-quality signal transmission with low signal loss and interference. This makes it an ideal choice for applications that require high data transfer rates, such as cable internet and digital TV. Secondly, it is durable and resistant to damage, making it suitable for applications that require cables to be installed in harsh environments such as outdoor applications. Finally, it is easy to install and maintain, which makes it popular among both professional installers and DIY enthusiasts.



In conclusion, KX8 coaxial cable is a reliable and versatile cable that is widely used in telecommunications and broadcasting applications. Its high-quality signal transmission, durability, and ease of installation make it an ideal choice for many different applications. Whether you are looking to install a new cable system for your business or home, or simply need to replace an existing cable, KX8 coaxial cable is an excellent choice.







What's your packing ?

A: Drum with pallet.We can according to ur demand.



Can ur factory customize cables based on clients' samples or data sheet?

A: Yes,we can.



May I get free sample?

A:Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.



 Which shipment available?

A:Normally, we ship goods by sea,air and courier. Special requirement we can negociate.



How to guarantee after sale ?

A: We provide 1 year products warranty. If the item is found to be defective in warranty,please contact us as soon sa possible, so that we can help to solve the problem at fastest rate : send back to our factory for repairing, or we send new one for you.





Construction

Conductor	Material	BC
	Diameter	7 x ( 0.4mm ± 0.02 mm )
Insulation	Material	SPE
	Diameter Diameter	7.42 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	APG
	Width	26 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 10%
Braid	Material	CU / CCA
	Diameterr	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
	Diameter	10.3 mm ± 0.3 mm



Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional



Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)



Certifications and Standards

Certification	CPR Eca
Executive Standards	Q/DXJ 194-2020



Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)	Maximum(dB/100ft)	Maximum(dB/100m)
10	0.69	2.3
50	1.29	4.3
100	1.98	6.6
200	2.85	9.5
400	4.18	13.8
700	5.70	19.0
900	6.69	22.3
1000	7.00	23.3
