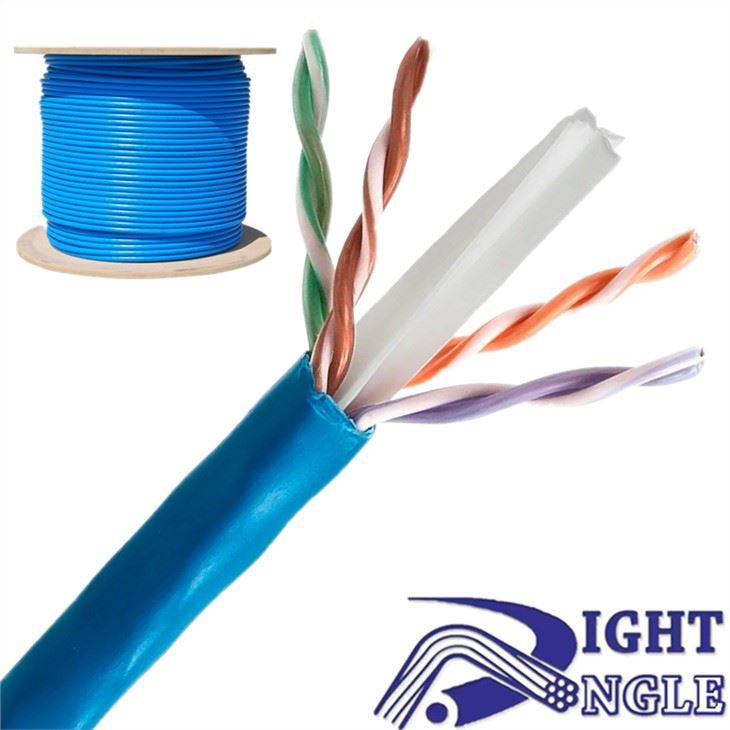

Name: Cat6A Network Cable
Brand: Right Angle
SKU: 173771659

This is Hangzhou Right Angle Cable Technology Co., Ltd. Our products are made with the latest materials and the latest technology. It has good anti-interference function and excellent transmission performance. We have the best after-sales service, if you have any problem after receiving the product, we will give you the best solution.

Cat6a adds better material specifications on the basis of CAT6, allowing the frequency of 500MHz to pass through, and the maximum speed can reach 10Gbps. It supports TIA / eia-568.2-d telecommunication standard and is applicable to data center and high standard application scenarios.

This product aggregates the following many CAT6A cables:

UTP Cat6a Lan Cable

UTP CAT6A Network Cable

UTP CAT6A Ethernet Cable

FTP Cat6a Lan Cable

FTP Cat6a Network Cable

FTP Cat6a Ethernet Cable

SFTP Cat6a Lan Cable

SFTP Cat6a Network Cable

SFTP Cat6a Ethernet Cable

Introduction

Computer networking technology has been on the forefront of technological advancements for a very long time. This has led to the development of various network cables over the years to cater for the diverse networking needs in different situations. Among the many network cable models in the market, Cat6A stands out as one of the most efficient network cables. This cable has specific features that set it apart from other network cable models in the market.

Cat6A Network Cable Description

Cat6A network cable is a type of cable that has been designed to provide high- speed data transmission over a distance of 100 meters. The cable is supported by an RJ-45 connector, which makes it compatible with different devices in the market. The cable is designed to support bandwidths of up to 500 MHz, which makes it one of the most efficient network cables in the market. The cable also has a conductor diameter of 23AWG, which enables the cable to withstand different types of network situations.

Features of Cat6A Network Cable

1. High-speed data transmission

The Cat6A network cable has been developed to support high-speed data transmission over short distances of up to 100 meters. The cable has been engineered to support bandwidths of up to 500MHz, which makes it possible for users to enjoy high-speed internet while using their devices.

2. Durability

The Cat6A network cable has been designed to withstand different types of network situations, which makes it durable compared to other network cable models in the market. The cable has a conductor diameter of 23AWG that enables it to withstand different types of wear and tear.

3. Compatibility

Cat6A network cable is compatible with different devices in the market. The cable uses an RJ-45 connector, which makes it possible for the cable to connect to different devices such as laptops, desktops, and servers.

4. 10GBASE-T Technology

Cat6A network cable uses 10GBASE-T technology, which makes it possible for users to enjoy high-speed data transmission of up to 10 Gbps over short distances of up to 100 meters. This feature is particularly useful for network scenarios that require high-speed data transfer.

5. Copper Construction

Cat6A network cable is made of copper conductors, which makes it highly effective in transmitting data signals over short distances. The copper conductors also ensure that the cable is resistant to interference from other electronic devices, which makes it more efficient compared to other network cable models that use different materials.

Applications of Cat6A Network Cable

1. Data Centers

Cat6A network cable is ideal for use in data centers that require high-speed data transmission. The cable's compatibility and high-speed data transfer make it an ideal choice for connecting different servers and other devices in a data center.

2. Campus Networks

Cat6A network cable's high-speed data transfer and compatibility with different devices make it ideal for use in campus networks. The cable can be used to connect different devices in a campus network, including laptops, desktops, and servers.

3. Commercial Buildings

Cat6A network cable is ideal for use in commercial buildings that require high-speed data transfer for various applications. The cable's compatibility and high-speed data transfer make it possible for employees to enjoy fast internet speeds while using their devices.

4. Government Buildings

Cat6A network cable is ideal for use in government buildings that require high-speed data transfer. The cable's durability and compatibility make it ideal for connecting different devices in government buildings, including computers and servers.

Product Speciﬁcation

Conductor	Material	BC ( Customized: CCA / CCC )
	Diameter	0.57 mm ± 0.02 mm
	Wire Gauge	23 AWG
Insulation	Material	HDPE
Insulation	Diameter	1.02 mm ± 0.1 mm
Separator	Material	PE
	Specification	4.5 mm ± 0.2mm
	Thickness	0.4 mm ± 0.02mm
Rip Cord	Material	Polyester
Rip Cord	Specification	500 D
Shield	Material	Foil
Shield	Overlap rate	≥ 10 %
Braid	Material	CU / CCA / TC
Braid	Coverage	80% - 98%
Jacket	Material	PVC / PE / PVC+PE / LSZH
Jacket	Diameter	6.4 mm ± 0.3 mm

Packing

Single package	Easy pull box
Package length	305m (Optional custom length)
Outer package	Carton box (2×Easy pull box)
Waterproof packaging	Optional

Test Data

Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	>8 times of outer cable diameter
Conductor Elongation at Break	≥10%
Shrinkage of Insulation	≤5%
Low Temperature Bending Test	No cracking
Heat Shock Test	No cracking
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)
