KX6 Coaxial Cable

Description

KX6 cable is generally used for indoor CATV antenna TV, or distribution cable for video communication. Of course, KX6 is also suitable for application scenarios with low demand attenuation. such as satellite system connection cables, etc Construction Packing Test Data Certifications and...

Chat Now Send Inquiry

Specification Download

Product Details

Download specification

Inquiry

KX6 coaxial cable is a type of coaxial cable typically used for radio frequency (RF) applications. It is commonly used for transmitting and receiving radio signals in radio communication equipment, CCTV systems, and other applications that require high-frequency transmission.

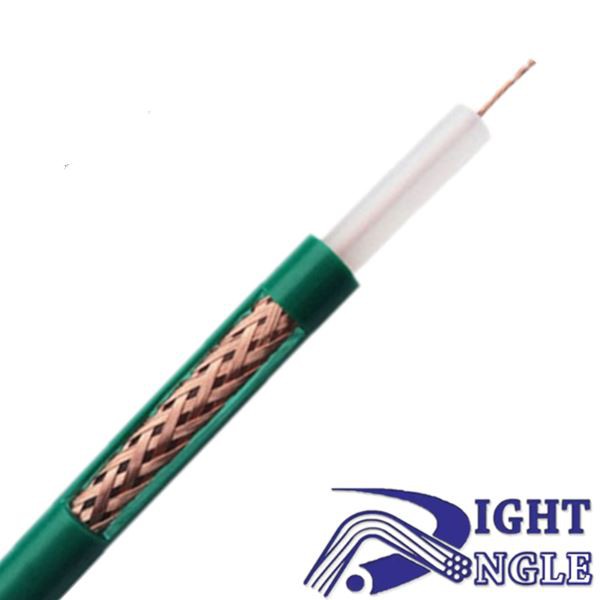

KX6 coaxial cable is made up of four parts: the outer conductor, the dielectric insulation, the inner conductor, and the jacket. The outer conductor is made of tightly woven braided copper wires, which protect the inner conductor from interference and minimize signal loss. The dielectric insulation surrounds the inner conductor and prevents electrical interference between the two conductors. The inner conductor, typically made of solid copper wire, is the primary conductor that carries the signal. The jacket, usually made of PVC or polyethylene, covers the entire cable and protects it from environmental factors such as moisture and abrasion.

One of the key features of KX6 coaxial cable is its low attenuation. Attenuation is the loss of signal strength as it travels through the cable. KX6 coaxial cable has low attenuation, which means that it is able to transmit signals over longer distances without losing signal strength. This makes it ideal for use in CCTV systems and radio communication equipment, where signals may need to be transmitted over long distances.

Another important feature of KX6 coaxial cable is its resistance to interference. Interference can occur when there are other signals or electromagnetic fields present in the environment that can interfere with the transmission of the signal. KX6 coaxial cable is designed to minimize interference and provide a clear signal.

KX6 coaxial cable also has a high shielding effectiveness. Shielding effectiveness refers to the cable's ability to protect the signal from external interference. KX6 coaxial cable has a very high shielding effectiveness, which helps to prevent external interference from affecting the signal.

KX6 coaxial cable is available in a variety of lengths and connectors to suit different applications and requirements. It is commonly used in a range of industries, including telecommunications, broadcasting, and security.

When choosing KX6 coaxial cable, it is important to consider factors such as the application, desired transmission distance, and required shielding effectiveness. It is also important to ensure that the cable is of high quality and meets industry standards. This will help to ensure that the cable is reliable and provides clear, high-quality signals.

Construction

Conductor	Material	BC
Conductor	Diameter	7 x ( 0.2mm ± 0.02 mm )
Insulation	Material	SPE
Insulation	Diameter Diameter	3.7 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	APG
	Width	14 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 20%
Braid	Material	CU / CCA
	Diameterr	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
Jacket	Diameter	6.1 mm ± 0.3 mm

Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional

Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)
