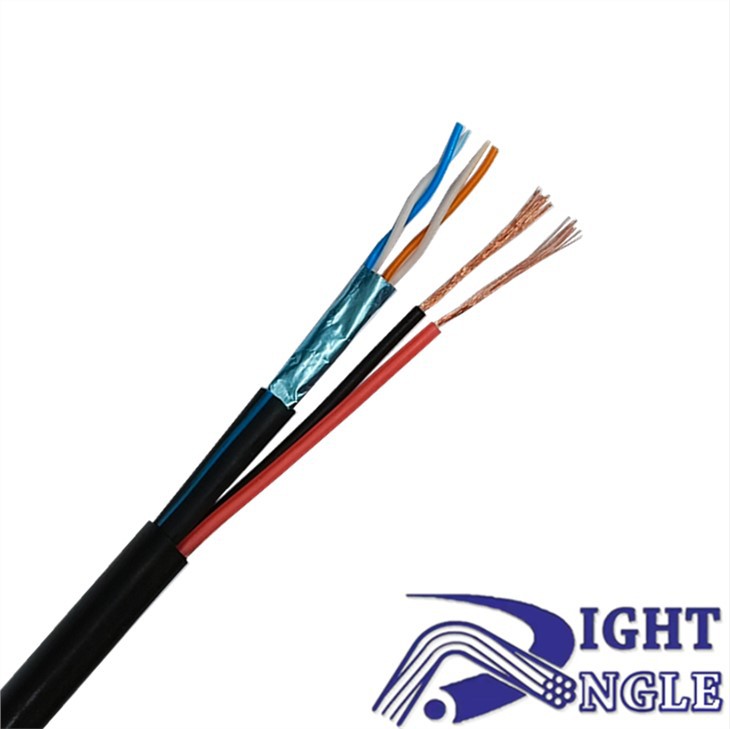

4+2 IP Camera Cable with Power

This product is a new product developed by our company and adopts a new technical standard. A layer of aluminum foil is added to the outside of the network cable to enhance the anti-interference function. The network cable and the power cable are cleverly combined, eliminating the need to reconnect the power cable. This product uses a double-layer sheath and a PE sheath on the outside, which can be used outdoors and has strong waterproof and anti-lightning functions.



We can provide you with custom services, custom cables and packaging, OEM for your brand. If you are interested or have any other questions, you can contact our sales and technical staff, or leave your contact information, our staff will contact you within 24 hours and solve any problems for you





4+2 IP Camera Cable with Power is a special type of cable designed to provide power and data connectivity to IP cameras within a network. This type of cable combines four pairs of wires for data transmission with two additional wires for power delivery, making it a versatile solution for powering and communicating with networked cameras.



The 4+2 IP Camera Cable with Power typically comes in a bundled package with connectors already installed at each end. This makes it easy to install and connect directly to devices without the need for additional installation tools. Additionally, the cable is typically made of high-quality materials including solid copper conductors and high-density polyethylene insulation, ensuring a reliable connection and long-lasting performance.



In terms of its capabilities, the 4+2 IP Camera Cable with Power is designed to support high-speed data transmission and power delivery over long distances, making it ideal for applications where cameras are located far from the central control system. The cable is designed to work with a variety of camera types and is compatible with both PoE (Power over Ethernet) and non-PoE cameras.



One of the main benefits of the 4+2 IP Camera Cable with Power is its simplicity and ease of installation. Unlike traditional cabling systems which require separate power and data lines, this cable provides both functions in a single cable. This not only simplifies the installation process but also reduces the overall cost of the installation.



Another benefit of the 4+2 IP Camera Cable with Power is its reliability. Because it is made of high-quality materials and is designed specifically for IP cameras, this cable can provide reliable data transmission and power delivery over long distances, ensuring cameras can be located anywhere within the network for maximum coverage and surveillance capabilities.



In addition to its technical advantages, the 4+2 IP Camera Cable with Power is also flexible and customizable. The cable is available in various lengths and can be customized to meet specific installation requirements. This makes it a versatile solution for a wide range of surveillance applications, from small residential systems to large commercial installations.



Overall, the 4+2 IP Camera Cable with Power is an excellent choice for anyone looking for a reliable, flexible, and cost-effective solution for powering and communicating with IP cameras within a network. Its ease of installation, high-quality materials, and customizable options make it an ideal solution for a wide range of surveillance applications.







Special monitoring cables for network digital high-definition cameras, 2 pairs of data transmission cables have better signal quality, optimized for crosstalk, loss and other details. Extra Power can reduce unnecessary repetitive wiring steps.



Product Specification

Conductor	Material	BC

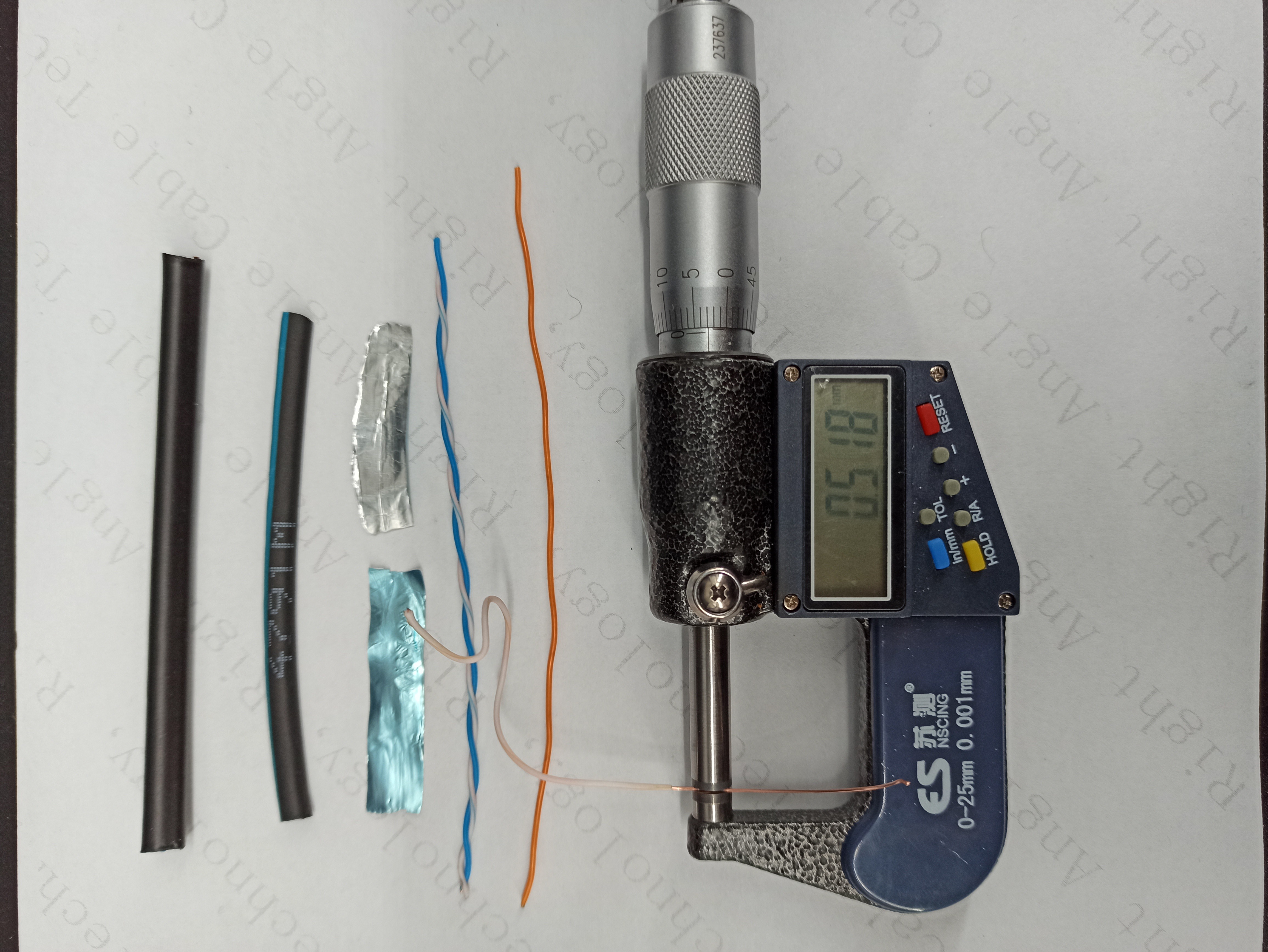

	Diameter	0.42 mm ± 0.02 mm
	Number of cores	2 × 2
Insulation	Material	HDPE
	Diameter Diameter	0.9 mm ± 0.1 mm
AL Foil	Construction	With Foil
	Material	AP
Jacket	Material	PVC
	Diameter	4.6 mm ± 0.3 mm
Power Conductor	Material	BC
	Diameter	2 × [ 19 × ( 0.12mm ± 0.02 mm ) ]
Power Insulation	Material	PE
	Diameter	1.8 mm ± 0.3 mm
Outer sheath	Material	PE
	Diameter	5.8 mm ± 0.3 mm



Packing

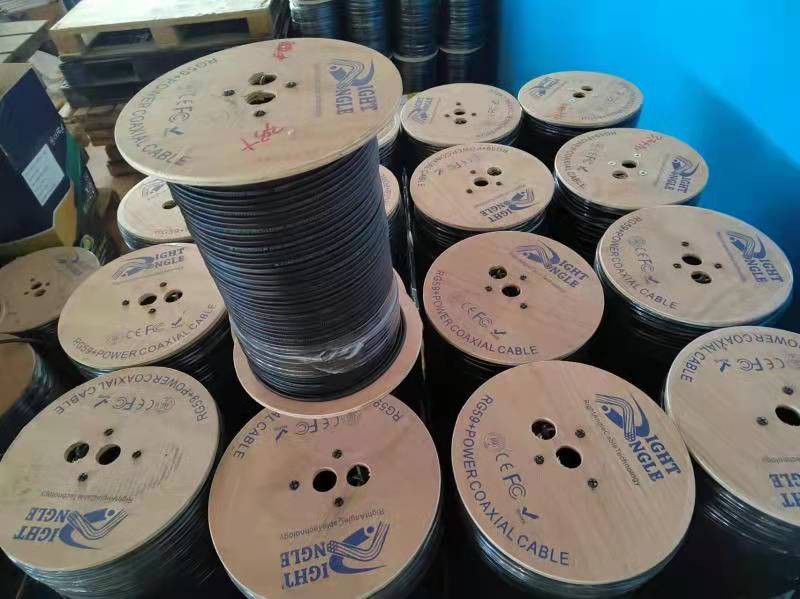

Single package	Wooden Drum
Package length	500 m
Outer package	Color box



Test Data

Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	>8 times of outer cable diameter
Conductor Elongation at Break	≥10%
Shrinkage of Insulation	≤5%
Color Migration Resistance of Insulation	No migration
Sheath Tensile Strength and Elongation at Break after Aging	≥12.5 MPa, ≥100%
Low Temperature Bending Test	No cracking
Heat Shock Test	No cracking
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)
Installation Temperature	0°C to +50°C (32°F to 122°F)



Certifications and Standards

Vertical Fire Propagation Test	Comply with IEC 60332-1-2
Certification	CPR Eca
