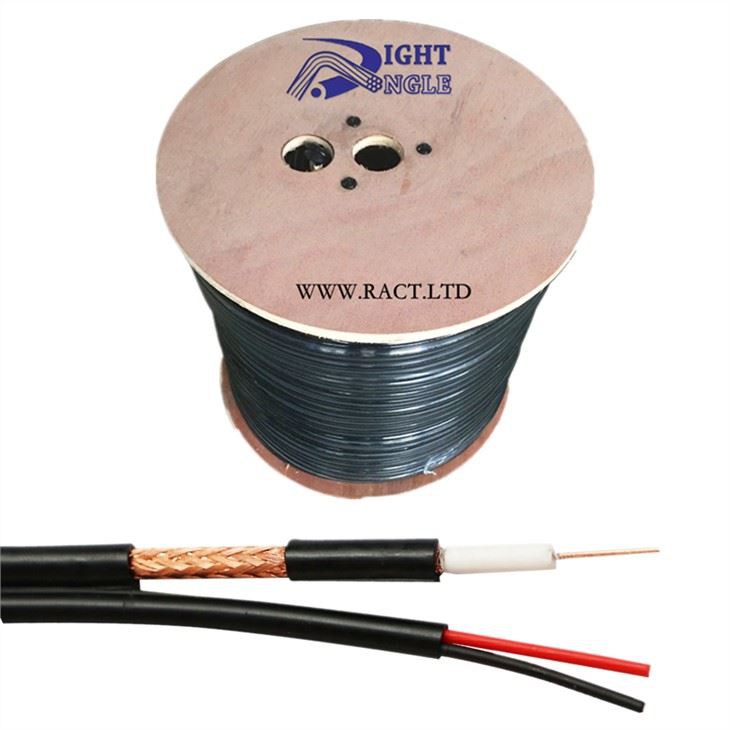

RG59+2C Cable

RG59 + 2C, CCTV Cable is used for the data transmission and function of CCTV camera. The addition of power cord on the basis of RG59 coaxial cable will reduce the repeated wiring steps when installing CCTV camera, optimize the installation method and improve the installation efficiency.







FAQ



Q: Hello, what are the characteristics of coaxial RF cable?



A: Hello! To sum up, coaxial RF cable is the most commonly used structural type. Because the inner and outer conductors are concentric and the electromagnetic energy is limited to the medium between the inner and outer conductors, it has the advantages of small attenuation, high shielding performance, wide use frequency band and stable performance. It is usually used to transmit RF energy from 500 kHz to 18 GHz. At present, there are two types of commonly used RF coaxial cables: 50 Ω and 75 Ω RF coaxial cables. RF coaxial cable with characteristic impedance of 75 Ω is commonly used in CATV network, so it is called CATV cable. The transmission bandwidth can reach 1GHz. At present, the transmission bandwidth of commonly used CATV cable is 750MHz.



Q: Hello, the price of lines with the same specification sold on the market will be much lower. How to identify and choose?



A: Hello! According to our investigation, the prices of wires sold in the market are uneven, and some buyers may choose cheaper ones. However, cheap wires often fail to achieve the performance of the actual logo, which may bring potential safety hazards to themselves. The production technology content of wires is not too high, and there is no great difference in raw materials. If the price is too low, it is likely to cut corners on work and materials (such as replacing pure copper with copper-clad aluminum and other materials), or the quantity is not enough (such as less meters and less Square), which will affect the service effect and service life of wires.



Therefore, if you need completely normal cables and fully compliant cables, do not hesitate to contact us immediately and tell us your needs. We will spare no effort to provide you with the best quality communication cable products.



Construction

Conductor	Material	BC / CCS
	Diameter	0.81mm ± 0.02 mm
	Wire Gauge	20 AWG
Insulation	Material	FPE
	Diameter Diameter	3.66 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	APG
	Width	14 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 20%
Braid	Material	CCA
	Diameterr	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
	Diameter	6.1 mm ± 0.3 mm
Power Conductor	Material	BC / CCA
	Diameter	24 x ( 0.2mm ± 0.02 mm )
Power Jacket	Material	PVC / PE
	Diameter	3.4 mm ± 0.3 mm



Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional



Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)



Certifications and Standards

Certification	CPR Eca
Executive Standards	Q/DXJ 194-2020



Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)	Maximum(dB/100ft)	Maximum(dB/100m)
5	0.86	2.82
55	2.05	6.73
187	3.60	11.81
300	4.45	14.60
450	5.40	17.72
600	6.20	20.34
750	6.98	22.87
865	7.52	24.67
1000	8.13	26.64
1200	8.97	29.40
1450	9.89	32.41
1800	11.81	38.72
3000	14.30	46.90
