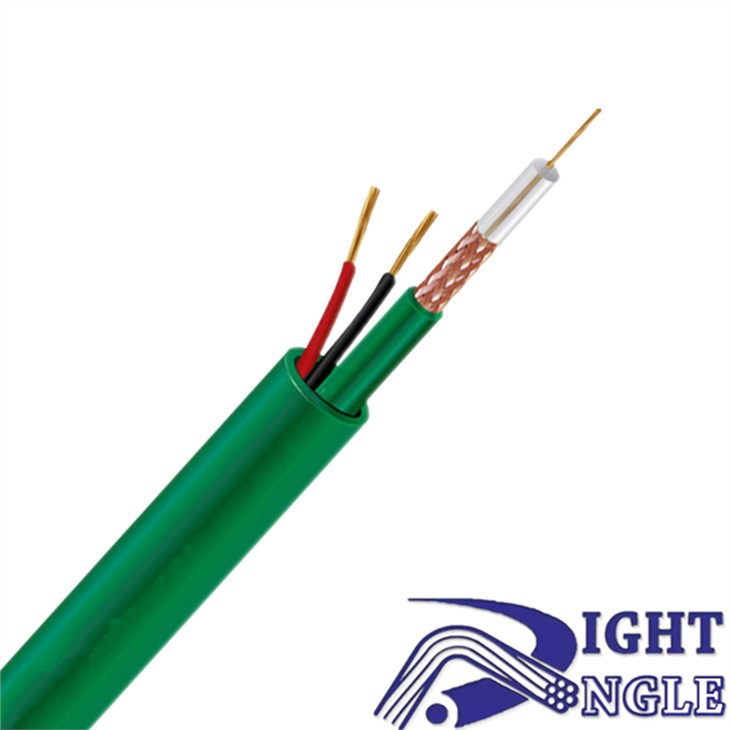

KX6 with Power Cable



KX6 with Power Cable is a cutting-edge audio cable that provides users with exceptional sound quality, versatility, and convenience. This cable is designed for use with various audio equipment, including studio monitors, amplifiers, mixers, and many other audio devices



The KX6 with Power Cable comes with advanced features that make it stand out from other cables in the market. One of these features is its high-density copper braided shielding that eliminates any signal interference from external sources. The shielding ensures that users enjoy clear and consistent audio transmission across a range of frequencies.



Moreover, the KX6 with Power Cable boasts a high-quality oxygen-free copper (OFC) wire core that delivers a superior signal transfer and exceptional sound quality. The OFC wire core is built to last and delivers an accurate and clean audio signal for an immersive listening experience.



Another remarkable feature of the KX6 with Power Cable is its dual-conductor design, which minimizes crosstalk and provides users with a more precise and detailed sound reproduction. The design also ensures a low noise floor, which is essential for professional recording environments.



One of the standout features of the KX6 with Power Cable is its Power Cable. The power cable is designed to create a strong and stable connection that guarantees long-lasting performance. The cable has a rugged design that is built to withstand heavy usage, making it ideal for professional settings.

The power cable's high-quality copper wires provide a smooth and consistent current flow that ensures efficient performance and electrical stability. TheKX6 with Power Cable's power cable also features acoustically transparent, color-coded jackets that allow for easy identification of the right and left channels.



Additionally, the KX6 with Power Cable comes with gold-plated connectors that provide excellent resistance to wear and corrosion, ensuring long-lasting performance. The connectors' tight tolerances also guarantee a secure connection and prevent the loss of signal.



The KX6 with Power Cable is designed with convenience in mind. The cable is easy to install and use, and its rugged design ensures it can withstand the rigors of travel and professional use. The cable comes in different lengths to meet various requirements and is available in multiple configurations.

In conclusion, the KX6 with Power Cable is an exceptional professional-grade audio cable that provides users with superior sound quality, versatility, and convenience. The cable's advanced features, including the high-density copper braided shielding, dual-conductor design, and power cable, make it an excellent choice for anyone looking for high-quality audio transmission. Whether you're a recording artist, DJ, or audiophile, the KX6 with Power Cable is sure to deliver exceptional performance and enhance your audio experience.

Construction

Conductor	Material	BC
	Diameter	7 x ( 0.2mm ± 0.02 mm )
Insulation	Material	SPE
	Diameter	3.7 mm ± 0.2 mm
AL Foil	Construction	With Foil
	Material	APG
	Width	14 mm
	thickness	> 0.024 mm
	Overlap Rate	≥ 20%
Braid	Material	CU / CCA
	Diameter	0.12 mm
	Braid Coverage	60% - 98%
Jacket	Material	PVC
	Diameter	6.1 mm ± 0.3 mm
Power Conductor	Material	CCA
	Diameter	7 x ( 0.3 mm ± 0.02 mm )
Power Insulation	Material	HDPE
	Diameter	2 x ( 1.6 mm ± 0.02 mm )
Out Jacket	Material	PVC
	Diameter	7.6 mm ± 0.3 mm



Packing

Package length	100m / 300m / 500m
	Customized
Box type	Ordinary / Waterproof
	Customized optional



Test Data

Dielectric Strength	Not breakdown with 2kV DC for 1 min
Sheath Strength	Not breakdown with 3kV
Characteristic Resistance	75Ω ± 5Ω
Insulation Resistance	5000MΩ/km
Elongation at Break (Wire)	≥15%
Elongation at Break (Sheath)	≥150%
Low Temperature Bending	Not cracked
Thermal Shock	Not cracked
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature	–10°C to +40°C (14°F to 104°F)



Certifications and Standards

Certification	CPR Eca
Executive Standards	Q/DXJ 194-2020



Technical Test [Attenuation @68°F(20°C)]

Frequency(MHZ)	Maximum(dB/100ft)	Maximum(dB/100m)
10	1.50	5.00
50	2.43	8.10
100	3.90	13.00
200	5.56	18.50
400	6.76	22.50
850	10.36	34.50
950	11.26	37.50
1000	13.51	45.00
