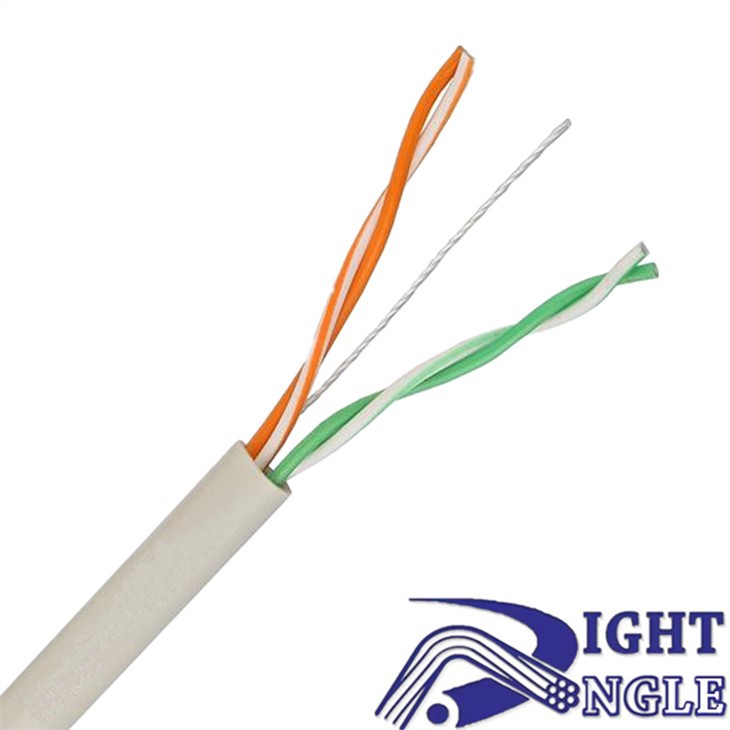

Network cable CAT3/Ethernet cable CAT3/Lan Cable CAT3 has only 2 pairs of conductors, that is, 4 conductors. It can be used in the picture data transmission of IP Camera Cable, and can also be used in the telephone line. Network Cable CAT3/Ethernet Cable CAT3/Lan Cable CAT3 supports 10/100 BASE-T transmission performance.

UTPCat3NetworkCable is a twisted pair network cable that is used for transmitting data and voice signals. This type of cable is very popular as it provides high-quality signals and can be used in different types of networks. UTP stands for unshielded twisted pair and Cat3 specifies the standard for such cables.

What is UTPCat3 Network Cable?

UTPCat3 Network Cable is an unshielded twisted pair cable used to transmit voice and data signals. It consists of four pairs of copper wires which are twisted together in pairs. Each pair is then twisted together with another pair to reduce electromagnetic interference.

Cat3 is an industry standard for UTP cables that defines the specifications for the cable’s performance. It was introduced in the 1990s and can support data transfer rates of up to 10Mbps up to a distance of 100 meters.

Uses of UTPCat3 Network Cable:

UTPCat3 Network Cable is commonly used in various networking solutions, including:

1. Voice Communication: UTPCat3 cable is frequently used in telephone systems as it can transmit voice signals over a long distance without any interference.

2. Data Communication: This cable supports data transfer at a maximum rate of 10Mbps and is widely used in local area networks (LANs).

3. Security Systems: Many security surveillance systems use UTPCat3 cable to connect cameras with the main system.

Advantages of UTPCat3 Network Cable:

The main advantages of UTPCat3 Network Cable include:

1. Affordable: UTPCat3 cable is relatively cheaper compared to other network cables like Cat5 and Cat6.

2. Easy Installation: The cable is easy to install and requires no special skills or tools.

3. Flexibility: UTPCat3 cable’s flexibility makes it easy to bend and install in tight spaces.

4. High-quality signals: UTPCat3 cable provides high-quality signals, which makes it suitable for voice and data communications.

Product Speciﬁcation

Conductor	Material	BC
	Diameter	0.42 mm ± 0.02 mm
	Wire Gauge	25.5 AWG
Insulation	Material	HDPE
Insulation	Diameter	0.75 mm ± 0.1 mm
Rip Cord	Material	Polyester
Rip Cord	Specification	500 D
Jacket	Material	PVC
Jacket	Diameter	4.0 mm ± 0.3 mm

Packing

Single package	Easy pull box
Package length	305m (Optional custom length)
Outer package	Carton box (2×Easy pull box)
Waterproof packaging	Optional

Test Data

Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	> 8 times of outer cable diameter
Conductor Elongation at Break	≥10%
Shrinkage of Insulation	≤5%
Low Temperature Bending Test	No cracking
Heat Shock Test	No cracking
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)
