Description
6g-sdi cable supports 6GB / s bitrates and continues to upgrade the transmission volume on the basis of 3g-sdi cable. 6g-sdi has reached the high-quality image quality of 1080p 120fps. Of course, its upgrade does not stop here. In addition to the high-quality image quality of 1080p 120fps,...
Share:
6g-sdi cable supports 6GB / s bitrates and continues to upgrade the transmission volume on the basis of 3g-sdi cable. 6g-sdi has reached the high-quality image quality of 1080p 120fps. Of course, its upgrade does not stop here. In addition to the high-quality image quality of 1080p 120fps, 6g-sdi cable has supported 4K 30fps image quality, which can be widely used in various large-scale live broadcasting, television stations, film shooting and other scenes.
High purity oxygen free copper core wire, multiple shielding (128 series Tin + double-sided aluminum foil + foamed PE layer) has strong resistance to external interference and small transmission data attenuation to ensure long-distance signal transmission. Multiple shielding (128 series Tin + double-sided aluminum foil + foamed PE layer) has strong resistance to external interference and small transmission data attenuation to ensure long-distance signal transmission)
6G SDI is applied to copper duplex video signal transmission, which has the characteristics of high performance and low cost. Use hd-bnc connector to transmit SDI signal (6g / 3G / HD / sd-sdi) on 75 ohm coaxial cable. 6G SDI is applied to copper duplex video signal transmission, which has the characteristics of high performance and low cost. Hd-bnc connector is used to transmit SDI signal (6g / 3G / HD / sd-sdi) on 75 ohm coaxial cable, which is specially designed to maintain performance robustness in SDI ill conditioned mode
In addition to the 6g-sdi cable products of the following specifications, we also support other specifications if you have requirements. Of course, if you don't ask, we will produce according to the standard 6g-sdi. Please contact our customer service staff on the website for price and delivery.
Construction
|
Conductor |
Material |
OFC |
|
Diameter |
1.02 mm ± 0.02 mm |
|
|
Wire Gauge |
18 AWG |
|
|
Insulation |
Material |
FPE |
|
Diameter Diameter |
4.57 mm ± 0.3 mm |
|
|
AL Foil |
Construction |
With Foil |
|
Material |
APG |
|
|
Width |
18 mm |
|
|
thickness |
> 0.024 mm |
|
|
Overlap Rate |
≥ 20% |
|
|
Braid |
Material |
OFC |
|
Diameterr |
0.12 mm |
|
|
Braid Coverage |
90% - 98% |
|
|
Jacket |
Material |
PVC |
|
Diameter |
6.91 mm ± 0.3 mm |
Packing
|
Package length |
10m / 30m / 50m / 100m |
|
Customized |
|
|

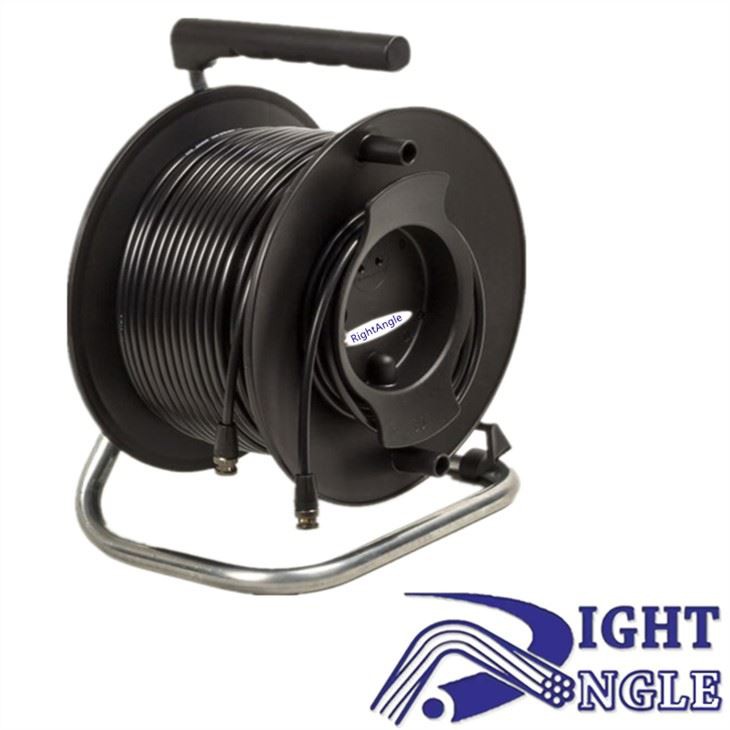

Box type |
Ordinary / Waterproof / Trolley |
|
Customized optional |
Test Data
|
Dielectric Strength |
Not breakdown with 2kV DC for 1 min |
|
Sheath Strength |
Not breakdown with 3kV |
|
Characteristic Resistance |
75Ω ± 5Ω |
|
Insulation Resistance |
5000MΩ/km |
|
Elongation at Break (Wire) |
≥15% |
|
Elongation at Break (Sheath) |
≥150% |
|
Low Temperature Bending |
Not cracked |
|
Thermal Shock |
Not cracked |
|
Operating Temperature |
–20°C to +60°C (–4°F to 140°F) |
|
Storage Temperature |
–10°C to +40°C (14°F to 104°F) |
Certifications and Standards
|
Certification |
CPR Eca |
Technical Test [Attenuation @68°F(20°C)]
|
Frequency(MHZ) |
Maximum(dB/100ft) |
Maximum(dB/100m) |
|
1 |
0.24 |
0.80 |
|
5 |
0.52 |
1.73 |
|
10 |
0.71 |
2.36 |
|
25 |
1.08 |
3.60 |
|
67.5 |
1.65 |
5.49 |
|
100 |
1.95 |
6.49 |
|
135 |
2.24 |
7.46 |
|
180 |
2.57 |
8.56 |
|
270 |
3.17 |
10.56 |
|
360 |
3.69 |
12.29 |
|
540 |
4.50 |
14.99 |
|
720 |
5.30 |
17.65 |
|
1000 |
6.30 |
20.98 |
|
2000 |
9.20 |
30.64 |
|
2250 |
9.80 |
32.63 |
|
3000 |
11.50 |
38.30 |
|
4500 |
14.5 |
48.28 |
|
6000 |
17.7 |
58.94 |
