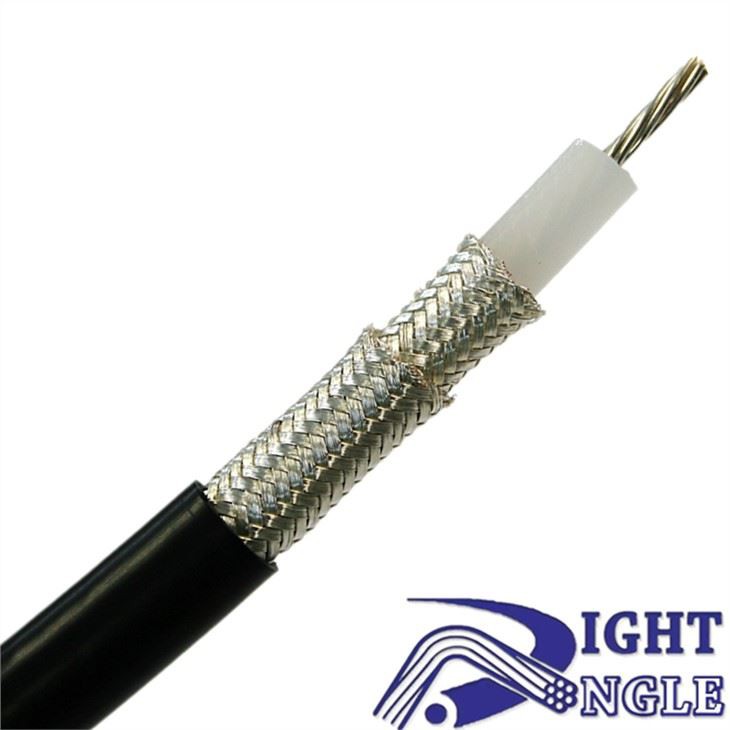

RG214 Coaxial Cable

RG214 Coaxial Cable

Description

The military specification equivalent value of rg214 coaxial cable is M17 / 75-rg214. This coaxial cable is used in telecommunications, data transmission, RF communication, broadcasting and computer applications. The rg214 can also be used for microwave transmission in local area network,...

Share:

Product Details

Download specification

Inquiry

The military specification equivalent value of rg214 coaxial cable is M17 / 75-rg214. This coaxial cable is used in telecommunications, data transmission, RF communication, broadcasting and computer applications. The rg214 can also be used for microwave transmission in local area network, instrument and coaxial control cable. It is used to connect wireless and data communication systems that require high signal sequence and low attenuation, as well as test leads and high-quality installation that require low PIM and crosstalk.



Hello, friend. You have browsed our website. We are Hangzhou right angle Cable Technology Co., Ltd. We are very good at manufacturing communication cables. We sell more than $1000 a year. We are a trustworthy Chinese supplier.



Our factory can produce all kinds of communication cables, such as RG6, RG59 and CAT6 cat6a. We usually manufacture these cables for you in 25 days. Of course, as a condition, your minimum order is 30km. What is 30km? The total length of all cables is more than 30km, then we can produce them for you.



In addition to these, we offer OEM customized services. Once your order is submitted, we will design cartons, pictures and logos for you. You can even post a QR code on the outer package of the product. When your customers scan it, they will show your brand information, your contact information and your phone number. Don't hesitate. If you have any ideas, please contact us immediately. Our top professional client, Sanny, whose WhatsApp / wechat is + 8615613343698



Construction

Conductor

Material

SC

Diameter

7 × ( 0.752 mm ± 0.02 mm )

Wire Gauge

13 AWG

Insulation

Material

SPE

Diameter

7.25 mm ± 0.1 mm

Braid

Material

TC (Customized optional: AL )

Braid Coverage

85 %

Braid

Material

TC (Customized optional: AL )

Braid Coverage

97 %

Jacket

Material

PVC

(Customized optional: PE/PVC+PE/LSZH)

Diameter

10.5 mm ± 0.3 mm



Packing

Package length

100m / 300m / 500m

Customized

Box type

Ordinary / Waterproof

Customized optional



Test Data

Operating Frequency

1 GHz

Velocity of propagation

66 %

Screening effectiveness

≥ 40 dB (up to 1 GHz)

Max. operating voltage

≤ 0.85 kVrms (at sea level)

Capacitance

101 pF/m. max

Insulation resistance

≥ 1 x 10^8 MΩm

Characteristic Resistance

50Ω ± 2Ω

Elongation at Break (Wire)

≥15%

Elongation at Break (Sheath)

≥150%

Low Temperature Bending

Not cracked

Thermal Shock

Not cracked

Operating Temperature

–20°C to +60°C (–4°F to 140°F)

Storage Temperature

–10°C to +40°C (14°F to 104°F)
