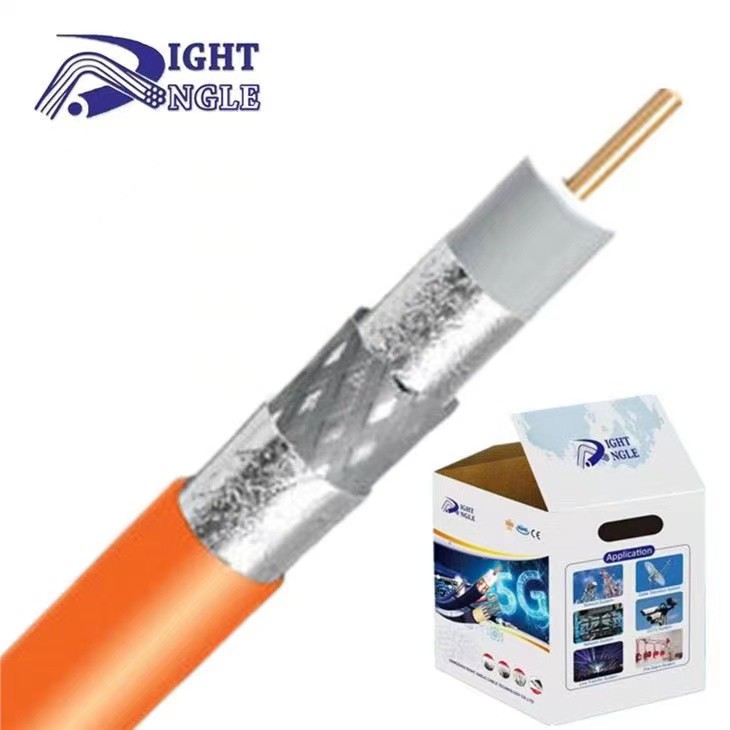

RG6 CCS 36% Cable

standard:
1.02mm CCS+4.57mm FPE+aluminum foil/adhesive+48 * 0.12mm aluminum+6.10mm PVC
Cable structure:
project
detailed
conductor
Material Science
Copper clad steel
Norm Dia
18 watts
dielectric
Material Science
Foam polyethylene
Norm Dia
4.57 mm
shield
Material Science
Aluminum foil/bonding+48 * 0.12 mm aluminum
cover
36%
Jacket
Material Science
PVC/PE
Norm Dia
6.9+/- 0.1 mm
Optional:
1) Internal conductor: tinned copper, bare copper, copper composite steel available;
2) Aluminum foil: aluminum foil, bonded aluminum foil, double bonded aluminum foil and APA are available;
3) Braided wire: aluminum magnesium, bare copper and tinned copper are available;
4) Braided wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16 mm available;
5) Knitting coverage: 30-95% available
6) Jacket color: white, black, transparent, etc.
Electrical characteristics S:
Electrical characteristics [@ 68 ° F (20 ° C)]
frequency
(MHz)
Nominal value (dB/100M)
frequency
(MHz)
Nominal value (dB/100M)
frequency
(MHz)
Nominal value
(dB/100m)
attenuation
5 MHz
one point nine zero
330 MHz
twelve point two six
550 MHz
sixteen point zero eight
55 MHz
five point two five
350 MHz
twelve point six three
600 MHz
sixteen point seven three
211 MHz
ten
400 MHz
thirteen point six one
750 MHz
eighteen point five four
250 MHz
ten point eight two
450 MHz
fourteen point four three
870 MHz
twenty point zero four
300 MHz
eleven point six four
500 MHz
fifteen point two nine
1000 MHz
twenty-one point four nine
Minimum return loss (dB)
>=20
Impedance (Ω)
75+/-3
Speed rate (%)
eighty-five
