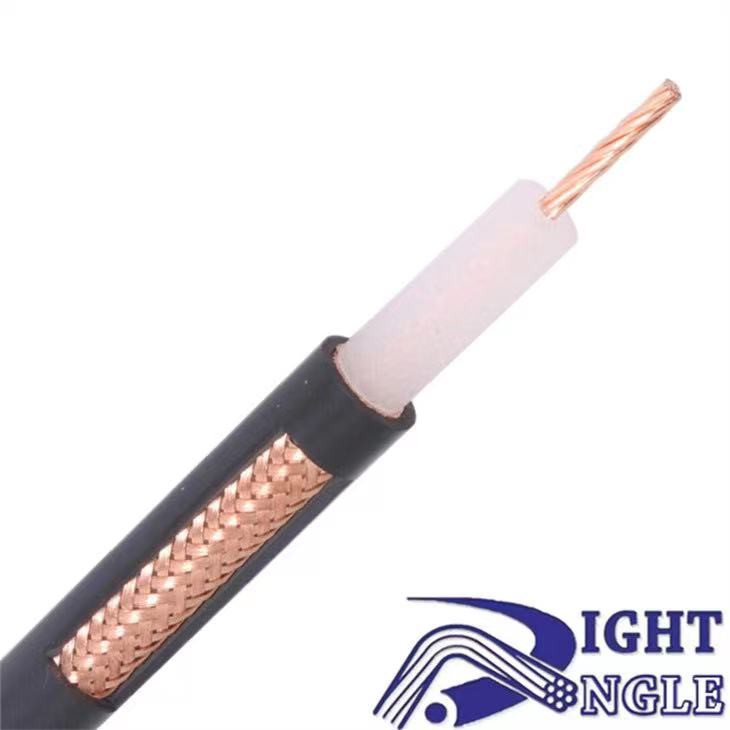

Rg59 Cable Camera Cctv C

Specification:

0.81mm CCS + 3.66mm FPE + aluminum foil/bonded + 64*0.12mm aluminum + 6.10mm PVC

Cable structure:

project

detailed

conductor

material

Copper-clad steel

Noam Dia

20AWG

dielectric

material

Styrofoam polyethylene

Noam Dia

3.66 mm

shield

material

Aluminum foil/bonding +64*0.12mm aluminum

cover

55%

jacket

material

polyvinyl chloride

Noam Dia

6.10 mm

Electrical characteristics S:

Electrical characteristics [@68°F (20°C)]

frequency

(MHz)

Nominal Value (dB/100M)

frequency

(MHz)

Nominal Value (dB/100M)

frequency

(MHz)

Nominal value

(dB/100m)

attenuation

5 MHz

2.82

600 MHz

20.34

1450 MHz

32.41

55 MHz

6.73

750 MHz

22.87

1800 MHz

38.72

187 MHz

11.81

865 MHz

24.67

2200 MHz

42.78

300 MHz

14.60

1000 MHz

26.64

450 MHz

17.72

1200 MHz

29.40

Minimum Return Loss (dB)

>=20

Impedance (Ω)

75+/-3

Speed rate(%)

85
