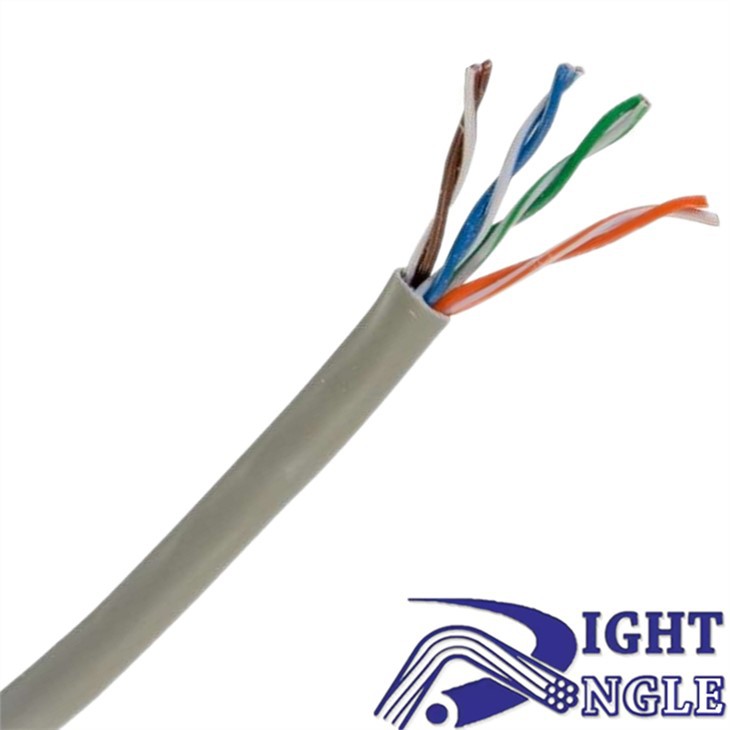

UTP CAT5e Lan Cable/UTP CAT5e Network Cable/UTP CAT5e Ethernet Cable is a pure copper conductor cable with 4 pairs of twisted pairs. It is widely used in LAN, Internet equipment, and can also be applied to IP Camera security system. UTP CAT5e Lan Cable/UTP CAT5e Network Cable/UTP CAT5e Ethernet Cable supports 1000 BASE-T transmission standard and can reach 1000Mbps transmission rate.

Enjoy unlimited entertainment at high speed, high-speed transmission, and connect with the stable and fast network era. Smooth viewing, no game card, faster download. It is widely used and has strong compatibility. It is suitable for computers, routers, switches, modems, hubs, etc. to connect wired equipment. Desktop, notebook, smart TV, router, TV box.

Environmental protection new material PVC, new material high-strength PVC, refuse secondary recycling material, flexible and wear-resistant, strong protection and durability. The selected copper core transmission has no attenuation, and the high-quality single strand 4N oxygen free copper conductor is selected, which has high electrical rate, low resistance, lossless signal transmission, small attenuation and fast transmission. High speed transmission supports Poe power supply, high-speed and stable transmission of 100m network, refuses delay jamming, supports Poe online power supply and provides DC power supply for equipment. Eight strand twisted pair anti-interference, encrypted twisted pair structure, small crosstalk, reduce mutual interference between signals, strengthen transmission performance, and embed through pipes to avoid transmission loss.

"Twisted pair" is not only the crosstalk of "O" in the encrypted sectional pitch. If each pair of wires has the same pitch, there will be coupling interference between adjacent pairs of wires. Only when the four pairs of twisted pitch degrees are different from each other, the crosstalk degree between each pair of wire pairs can be reduced to less.

Product Speciﬁcation

Conductor	Material	BC (Customized: CCA /CCC)
	Diameter	0.51 mm ± 0.02 mm
	Wire Gauge	24 AWG
Insulation	Material	HDPE
Insulation	Diameter	0.92 mm ± 0.1 mm
Rip Cord	Material	Polyester
Rip Cord	Specification	500 D
Jacket	Material	PVC (Customized: PE/PVC+PE/LSZH)
Jacket	Diameter	5.0 mm ± 0.3 mm

Packing

Single package	Easy pull box
Package length	305m (Optional custom length)
Outer package	Carton box (2×Easy pull box)
Waterproof packaging	Optional

Test Data

Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	> 8 times of outer cable diameter
Conductor Elongation at Break	≥10%
Shrinkage of Insulation	≤5%
Low Temperature Bending Test	No cracking
Heat Shock Test	No cracking
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Storage Temperature Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)
