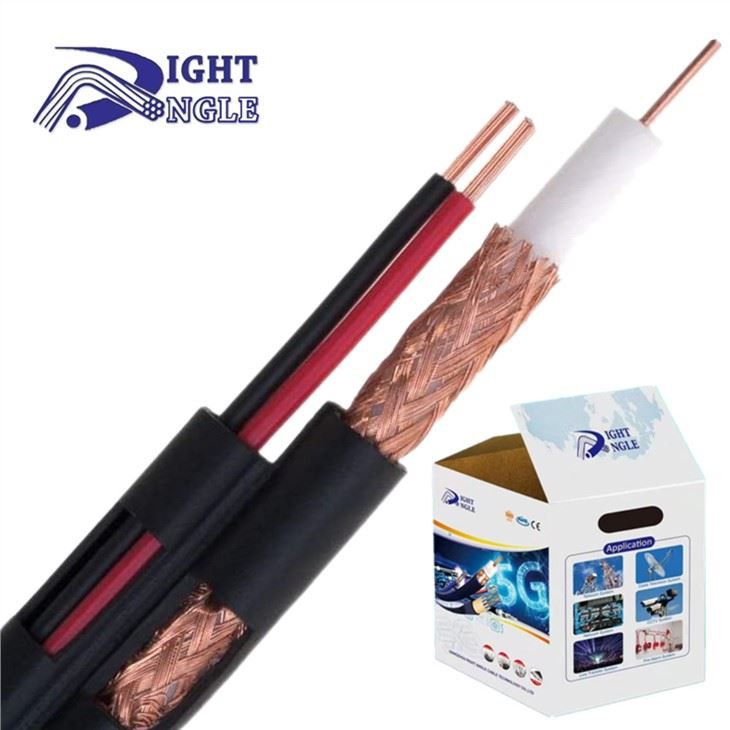

Rg59 With Power Cable For Camera Home Security CCTV Camera System

Hangzhou Right Angle Cable Technology Co., Ltd. It is well known that the composition of the camera home security CCTV camera system requires communication cables, and individual equipment cannot work. In the camera home security CCTV camera system, the communication cable required for equipment connection at both ends is RG59+2C, which is the common Chinese name. In addition, this kind of cable is generally called CCTV Camera Cable or CCTV Cable in the world

In addition, the name of the cable is RG59 with power or RG59 DC. In a word, there are many names of the cable, but they are actually the same product.

Introduction

The Rg59 With Power Cable For Camera Home Security CCTV Camera System is a high-quality cable that is designed to provide security and surveillance solutions at home, in commercial properties, and public areas. This cable is built with superior materials that ensure optimal connectivity and high-speed data transfer. The Rg59 with power cable is mainly used in CCTV installations as it provides power to the camera system as well as transmits video signals.

Features

The design of the Rg59 with power cable includes the use of high-quality materials that enhance the strength, durability, and flexibility of the cable. The conductors are made of high-grade copper, which enables the cable to transmit power and data efficiently over long distances. The copper conductors are coated with dielectric insulation that shields against electrical interference and boosts the signal transmission quality.

The Rg59 cable also has a braid shield that provides an additional layer of shielding against electromagnetic interference and increases the cable's overall durability. The 75-ohm impedance of the Rg59 cable is ideal for transmitting video signals and power to cameras in low-voltage environments, such as security camera installations.

The Rg59 with power cable is designed to support up to 2A of power current, which is sufficient to power standard CCTV cameras. The cable is resistant to harsh environmental conditions, such as extreme temperatures, ultraviolet light, and moisture. It comes in pre-terminated lengths of up to 1000 feet, making it easy to install and configure in any security system.

Applications

The Rg59 with power cable is a versatile cable that is used in many applications, including home security systems, commercial surveillance, and public area monitoring. Its high-quality construction and superior features make it a popular choice in the security industry. The Rg59 cable is used to power and transmit video signals from various security systems, including CCTV cameras, digital video recorders, and network video recorders.

The cable is suitable for use in many environments, including indoor and outdoor installations. It is recommended for use in low-voltage environments, such as security camera installations, where it provides reliable power and video transmission. The Rg59 with power cable is commonly used in the following applications:

1. Home security systems – The Rg59 cable is commonly used in home security systems to provide power and transmit video signals from security cameras. It is ideal for protecting residential properties against burglaries, vandalism, and other security threats.

2. Commercial surveillance – The Rg59 cable is used in commercial properties such as retail stores, offices, and warehouses to provide security and surveillance solutions. It is used to monitor operations, prevent theft, and protect people and property.

3. Public area monitoring – The Rg59 cable is used to provide surveillance and security in public areas such as parks, streets, and hotels. It is used to monitor behavior, detect criminal activity, and ensure public safety.

Installation

The Rg59 with power cable is easy to install and configure, making it a favorite among security technicians. The cable comes in pre-terminated lengths, meaning that it is already fitted with connectors and can be plugged into the security cameras or other devices. The connectors are commonly BNC connectors for video signals and 2.1mm DC power plugs for power transmission.

Before installation, it is essential to assess the location's requirements for security and surveillance. Ensure that the cameras are positioned to capture the desired fields of view and that there is sufficient lighting to facilitate video capture. The Rg59 cable can be installed using the following steps:

1. Determine the cable length required for your security installation. Cut the Rg59 cable accordingly, ensuring that it is the correct length.

2. Strip around ¼ inch of insulation from the ends of the conductors. This will expose the copper conductors, which are then twisted to ensure connectivity.

3. Attach the connectors to the cable ends. This is done by fitting the BNC connector to the video conductor and the DC power plugs to the power conductors.

4. Connect the cable to the cameras or other installation devices. Ensure that the connectors fit securely by screwing them tightly.
