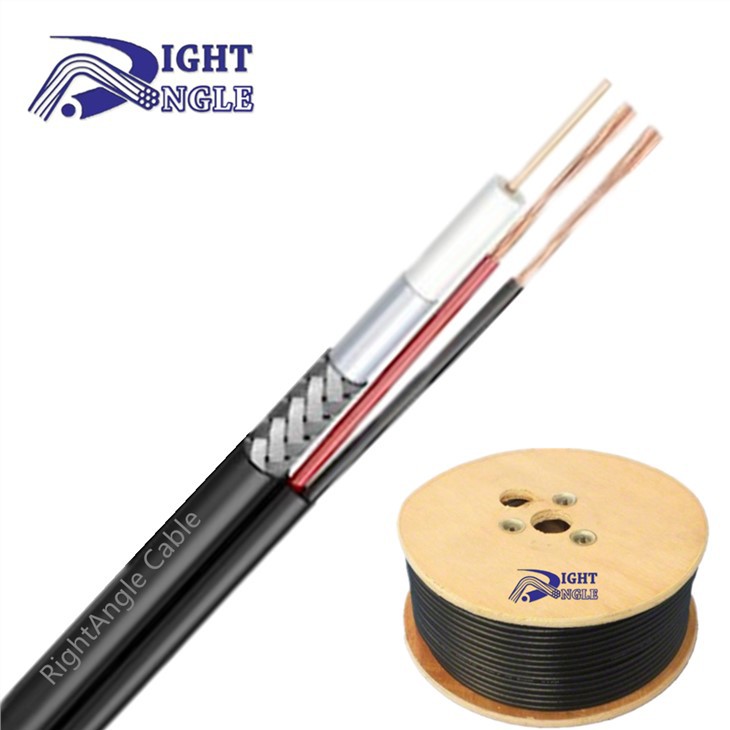

0.65mm CCA Conductor Cable Camera Cctv

Description

It is mainly used as a surveillance video cable within a range of 350 meters. RG59 is mainly used in RF, CCTV, TV transmission audio, video and other fields, RG-59 coaxial cable is 75 ohm flexible coaxial cable

Chat Now Send Inquiry

Product Details

Download specification

Inquiry

product-1000-450

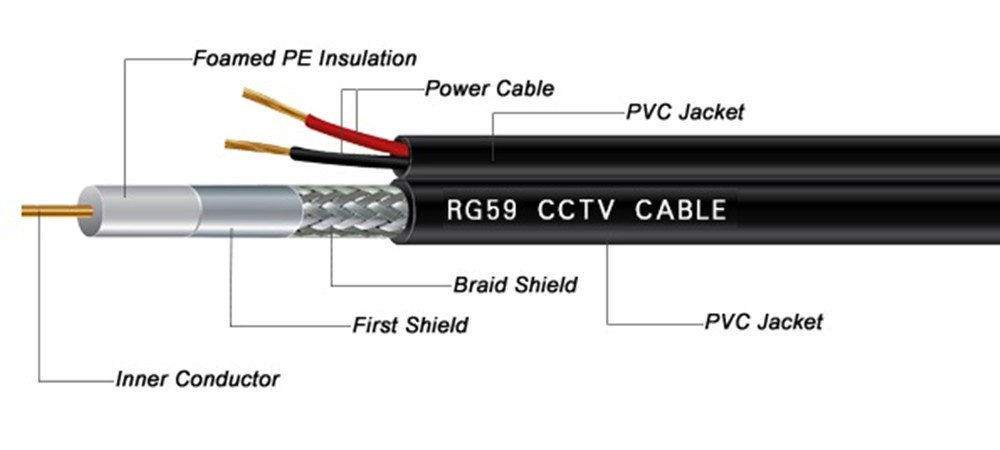

Detailed specifications

Name RG59+ power cord
Inner conductor 20AWG, 0.81mm copper-clad steel
Insulator 3.66mm foamed PE
Shielding self-adhesive aluminum foil
Braided 64x0.12mm aluminum-magnesium alloy wire (60% coverage)
Outer sheath 6.1+0.1mm PVC sheath
Power cord 16x0.2mm copper clad aluminum + 1.7mm PE red
16x0.2mm copper clad aluminum + 1.7mm PE black
Outer sheath 4.0+0.1mm PVC Jacket
Can be customized according to the samples provided by customers!!!

Electrical performance
Impedance: 75+/-3 Ohm echo attenuation 5-1000MHz≥22dB
Capacitance: 52+/-2 pF/M 1000-2000MHz≥20dB
Propagation rate: 85% shielding attenuation≥70dB

Attenuation (@20oC)
Frequency (MHz) Max Attenuation (dB/100FT) Max Attenuation (dB/100M)
5 0.9 2.8
55 2.1 6.7
187 3.6 11.8
211 3.8 12.5
400 5.1 16.7
500 5.7 18.7
750 7.0 22.8
860 7.5 24.6
1000 8.0 26.3
1500 9.9 32.5
1800 10.9 35.6
2200 12.6 41.2
3000 13.8 45.2
