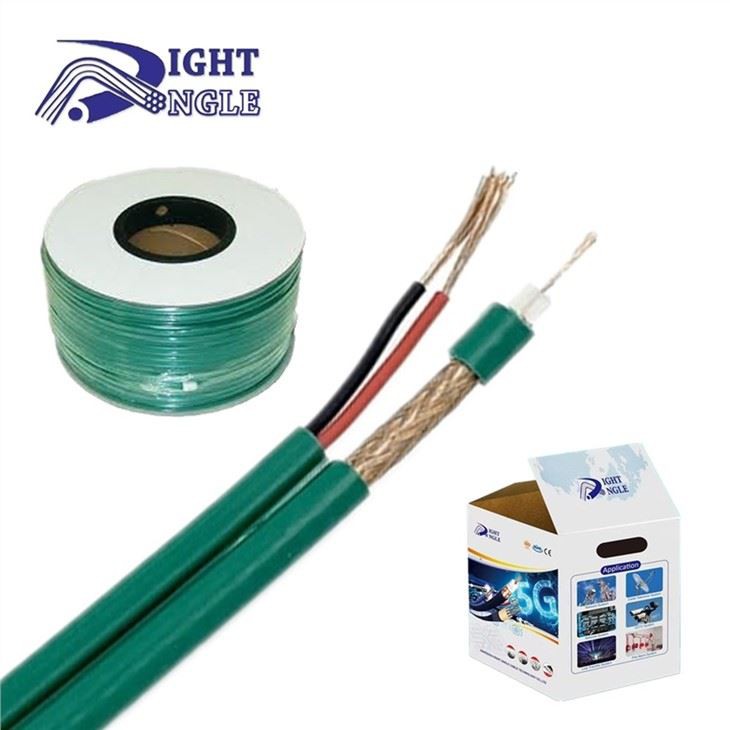

Cctv Camera Cable Pure Copper Kx7 With Power

Description

This is a high-quality monitoring system signal cable. The conductor of this kx7 with power cable is composed of multiple conductors. This cable has good flexibility, is not easy to break, and has good tensile strength. The material of the conductor also supports customization. CCTV camera...

Chat Now Send Inquiry

Product Details

Download specification

Inquiry

Product Details

KX6 Coaxial Cable/KX6A Coaxial Cable :
Coax Cable: 7*0.2OFC+3.7SPE +95%Braidig+6.1PVC(Green)
Inner Conductor (mm): 7*0.2 BC / CCS
Dielectric (mm): 3.66± 0.10 FPE / SPE
Outer Conductor (mm): 4.3
Jacket (mm): 6.1± 0.1 PVC / PE

CCTV cameras have become an essential part of home and business security systems. These systems rely on a strong and reliable CCTV cable to transmit video signals from the cameras to the monitoring system. The CCTV Camera Cable Pure Copper KX7 with Power is an excellent option for those who are looking to install a CCTV system that is resistant to interference and able to transmit high-quality video signals.

The KX7 cable is manufactured using pure copper, which provides better conductivity and reduces signal loss. This cable is also shielded, which reduces the chances of any external interference. The cable consists of a coaxial conductor for video signals and a stranded conductor for power transmission. The stranded power conductor allows for easy installation and flexibility, making it ideal for CCTV installations.

This cable is suitable for use with analog CCTV systems and high definition CCTV systems, including those that support 4K video resolutions. The KX7 cable can transmit video signals over long distances without losing signal quality. This feature is particularly important for commercial applications where long cable runs may be required.

The KX7 cable comes in a variety of lengths, ranging from 25 feet to 1000 feet. The length of the cable required will depend on the size of the space to be covered and the number of cameras to be installed. The cable can be cut to the required length, making it easy to install and customize as needed.

In addition to its technical specifications, the KX7 cable is also designed to be durable and weather-resistant. The cable has a PVC exterior that is resistant to UV rays, moisture, and temperature changes. This means that it can be used indoors or outdoors, making it a versatile choice for CCTV installations.

When installing a CCTV system, it is essential to ensure that the cable used can provide a reliable and clear signal. The CCTV Camera Cable Pure Copper KX7 with Power meets these requirements and is a cost-effective option for those looking to install a CCTV system. With its pure copper conductor, shielded design, and durable exterior, the KX7 cable is an excellent choice for residential and commercial installations.
